according to these photos, shouldn't minimum ocpd be 125a?
shouldn't wire be rated for 150 amps?
shouldn't wire be rated for 150 amps?
AC OCPD, conductor size help
1 - 18 of 18 Posts
Joined
·
1,622 Posts
or is it 62.5a for the wire? 15kva/240=62.5amps?
Joined
·
1,937 Posts
Minimum conductor ampacity 85.6/ maximum ocpd 90 amps
Joined
·
1,622 Posts
thanks. whoever put this in ran a #4 but put it on a 50a breaker, then installed a 30a fusible disconnect.
Joined
·
2,923 Posts
Can someone please show me where the 85.6 comes from?
Joined
·
253 Posts
According to the nameplate and the heater package installed, minimum circuit ampacity is 111.7 amps and maximum OCPD is 125 amps.
No additional calculations needed.
No additional calculations needed.
Joined
·
2,923 Posts
That is not what I am seeing...I'm seeing MaxOCP at 80/90A depending on voltage for the heaters.
Joined
·
253 Posts
He has heater package 103A00.
In the top nameplate the info is next to that heater package.
In the top nameplate the info is next to that heater package.
Attachments
Joined
·
253 Posts
Actually, I think I got my numbers mixed up, this heater package isn't listed on the nameplate. Not exact anyway.
Joined
·
253 Posts
You're correct, the heater package above the one I listed corresponds to the amperage of his heater package.
Had pool night last night, not awake yet:laughing:
Joined
·
988 Posts
UL nameplate must be followed as per NEC. 15 kW heater unit that was installed was not marked on nameplate. Have to work backwards to locate correct unit on nameplate. 85 amp circuit & 90 amp CB for 230 volt installation.
Joined
·
988 Posts
15 kW element @ 62.5 fla + indoor fan @ 6 fla = 68.5 x 1.25 = 85.625
No compressor or outdoor fan loads for electric heat.:thumbsup:
Joined
·
1,681 Posts
He is only running with the 15 kw heater.
Joined
·
3,106 Posts
I would have the HVAC guy come back and mark the correct block.
Bet he will do it the next time.
Bet he will do it the next time.

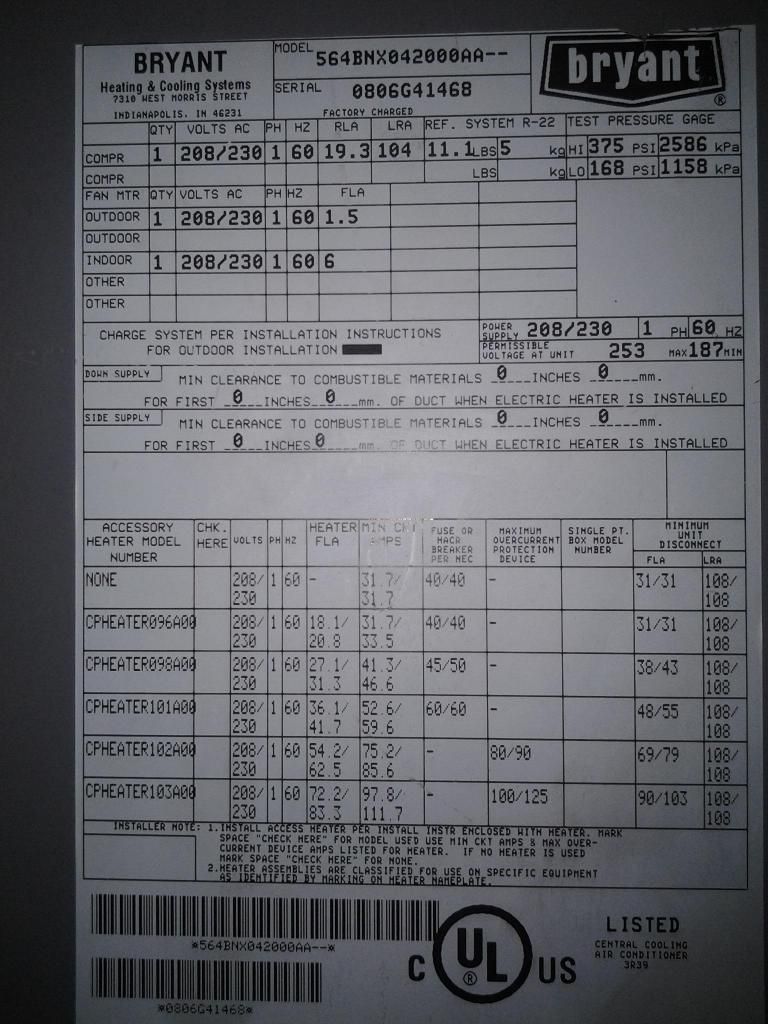

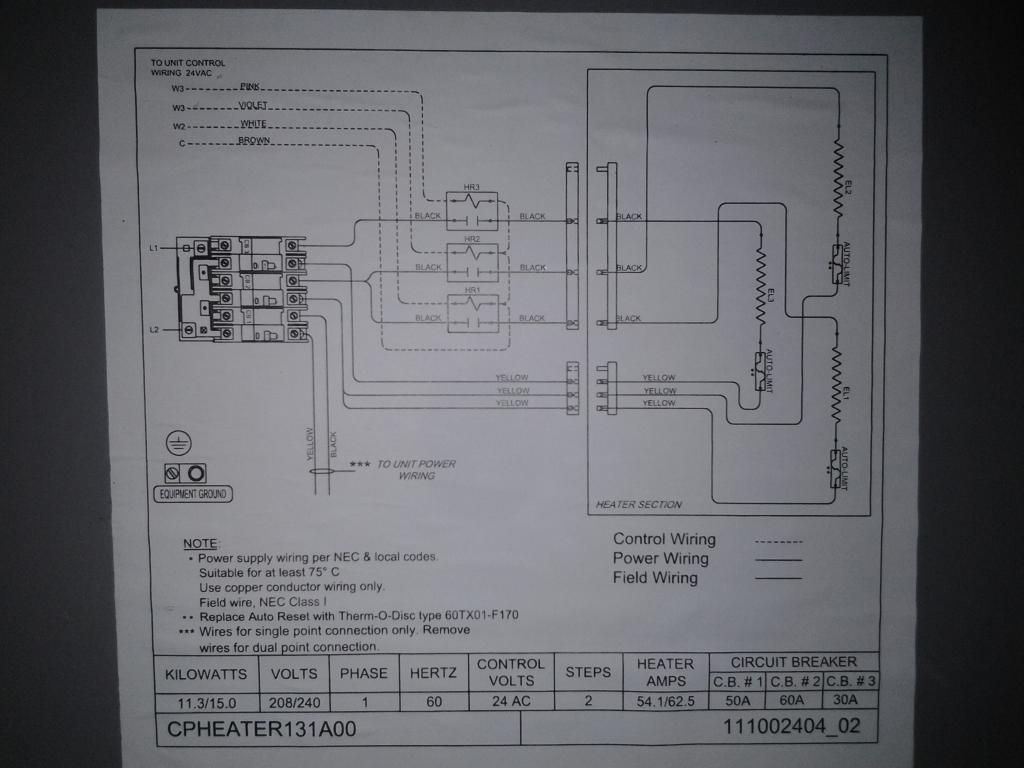

Read the heater amps in the second photo. 62.5A at 240v. Then find the same heater amps in the first photo under one of the other heater packages. That gets you 85.6 min circuit ampacity and 90 amp breaker.
I don't get why the HVAC guys never check the box though, that would make it way too easy!
I don't get why the HVAC guys never check the box though, that would make it way too easy!
